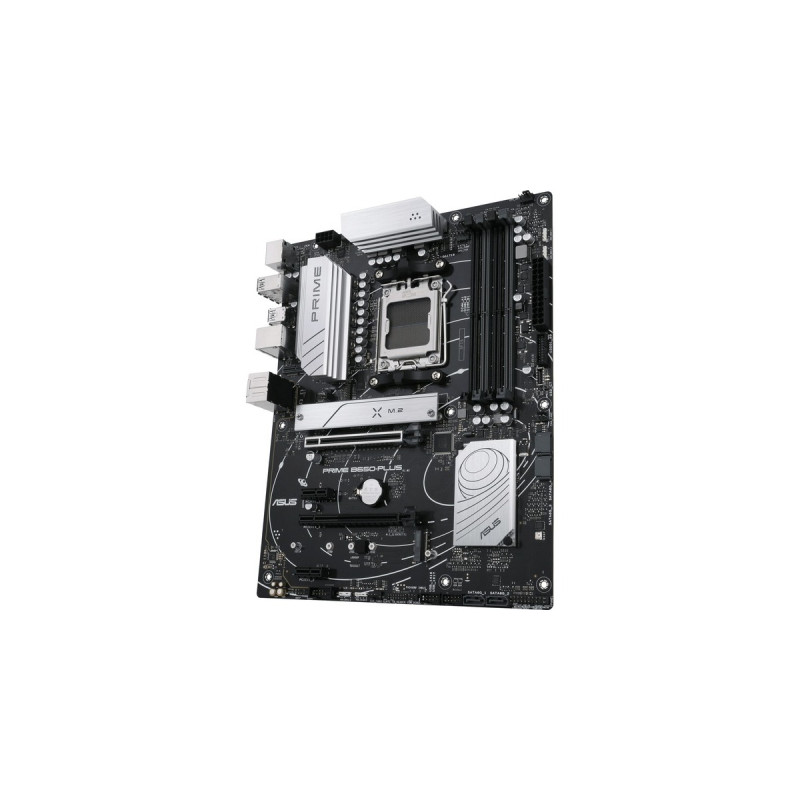

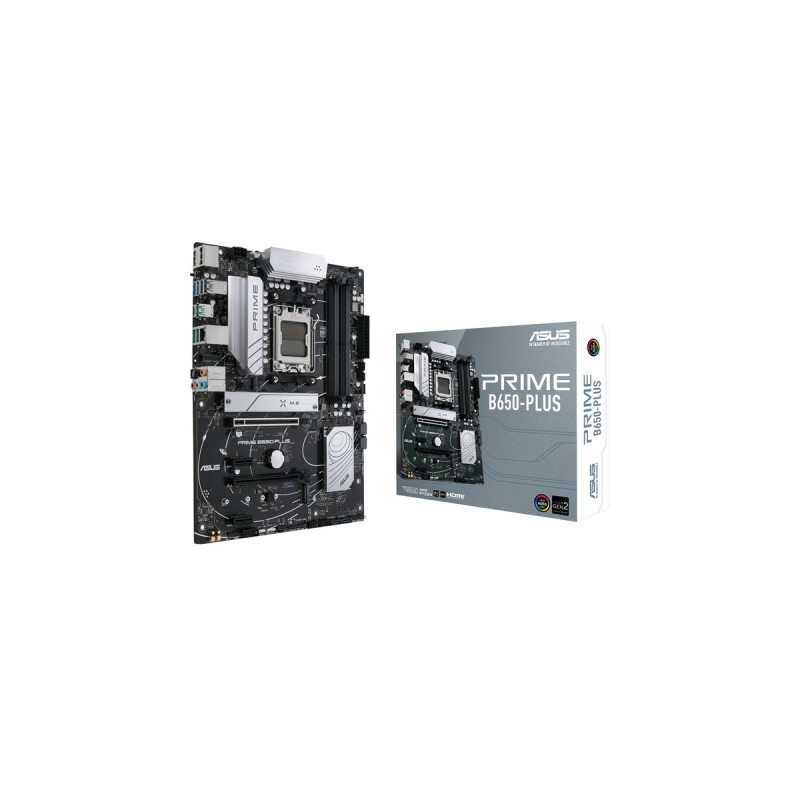

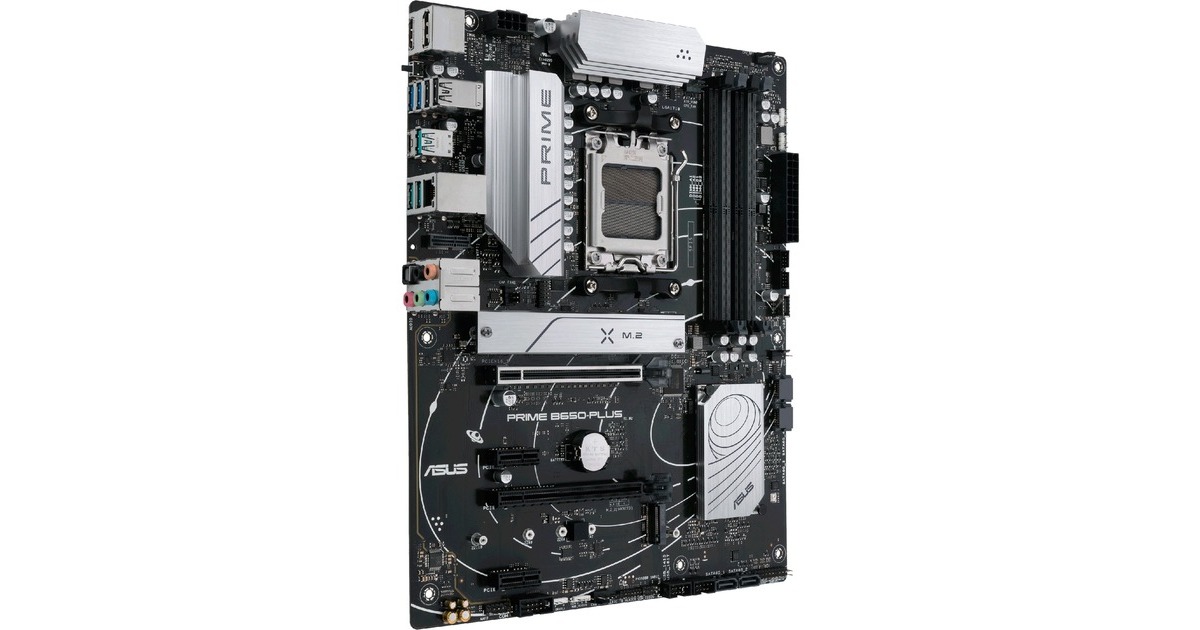

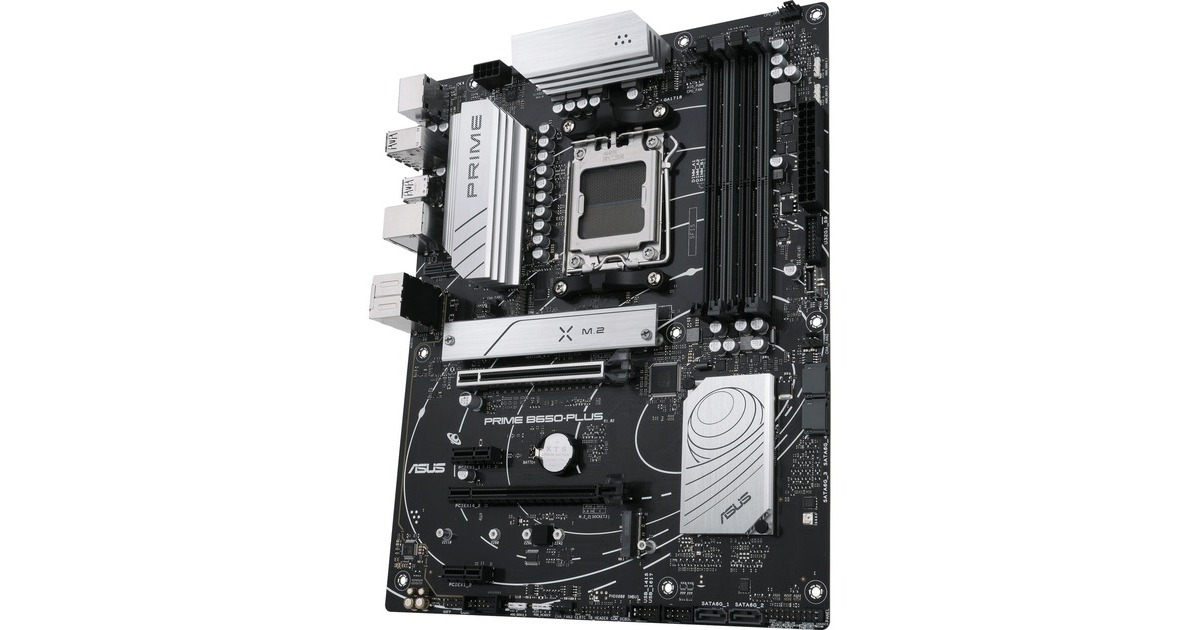

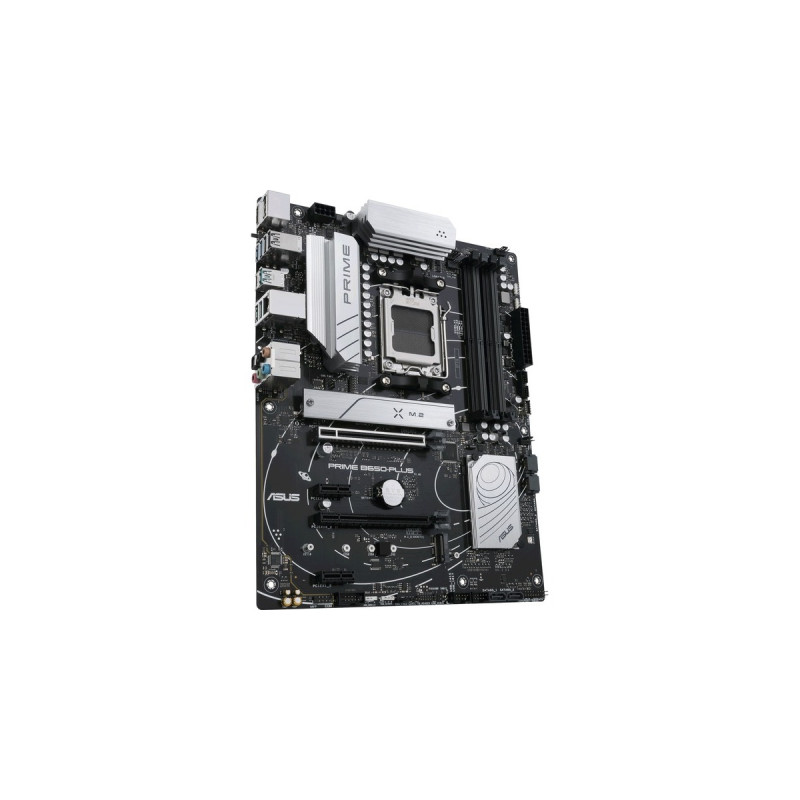

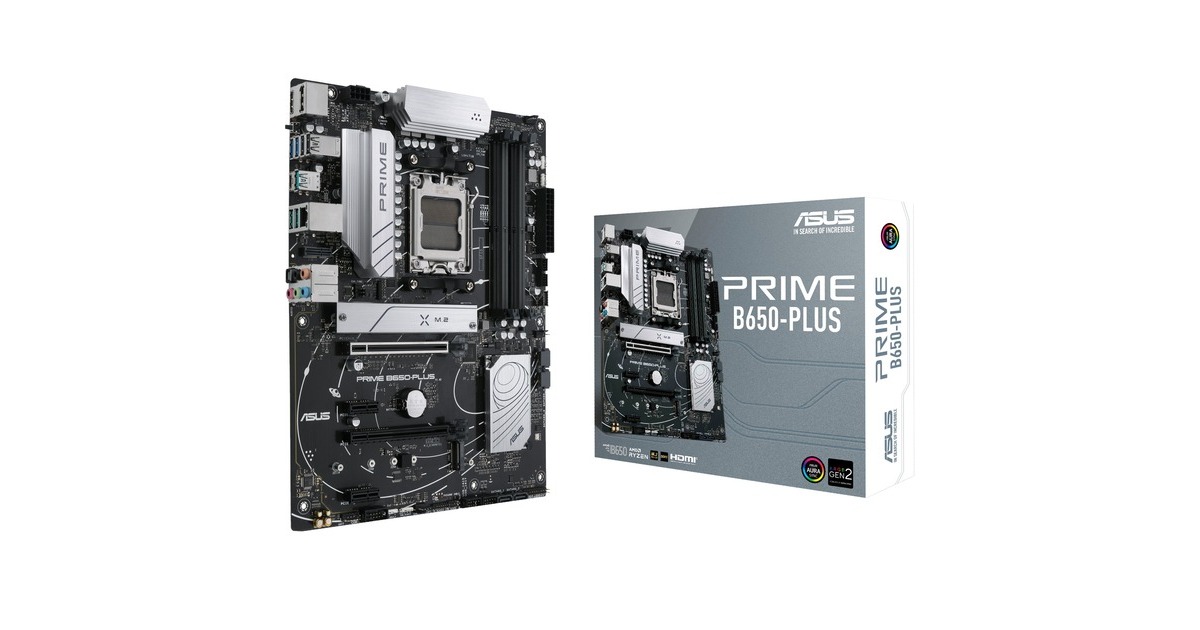

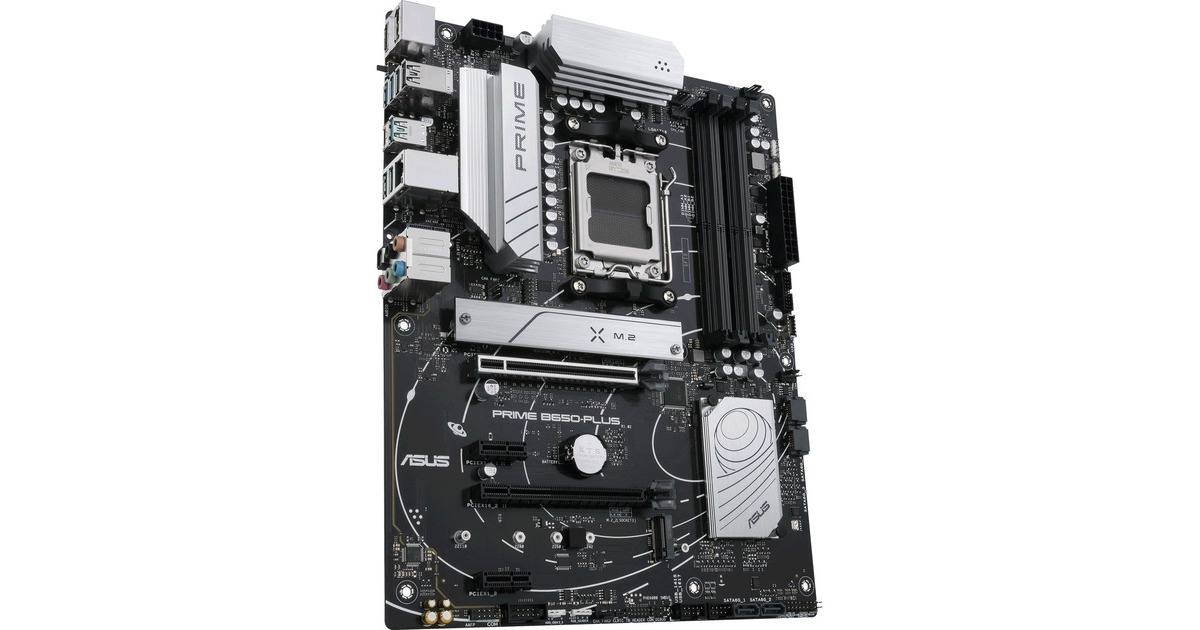

ASUS PRIME B650-PLUS, Mainboard(silber)

Hersteller ASUS Artikelnr. 90MB1BS0-M0EAY0
All about product
Description
Eigenschaften
Questions0
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
ASUS PRIME B650-PLUS, Mainboard(silber)
Lagernd
Abmessungen:Breite: 244 mm x Höhe: 305 mm x Tiefe/Länge: 37 mm
addressable RGB LED Header:3
Anschlüsse (extern)USB-C 3.2 Gen 2 (10 Gbit/s):1
Anschlüsse (intern)SATA:4
Anschlüsse (optional)USB 3.2 Gen 1 (5 Gbit/s):2
ASUS PRIME B650-PLUS, Mainboard(silber)
Description

Produktbeschreibung

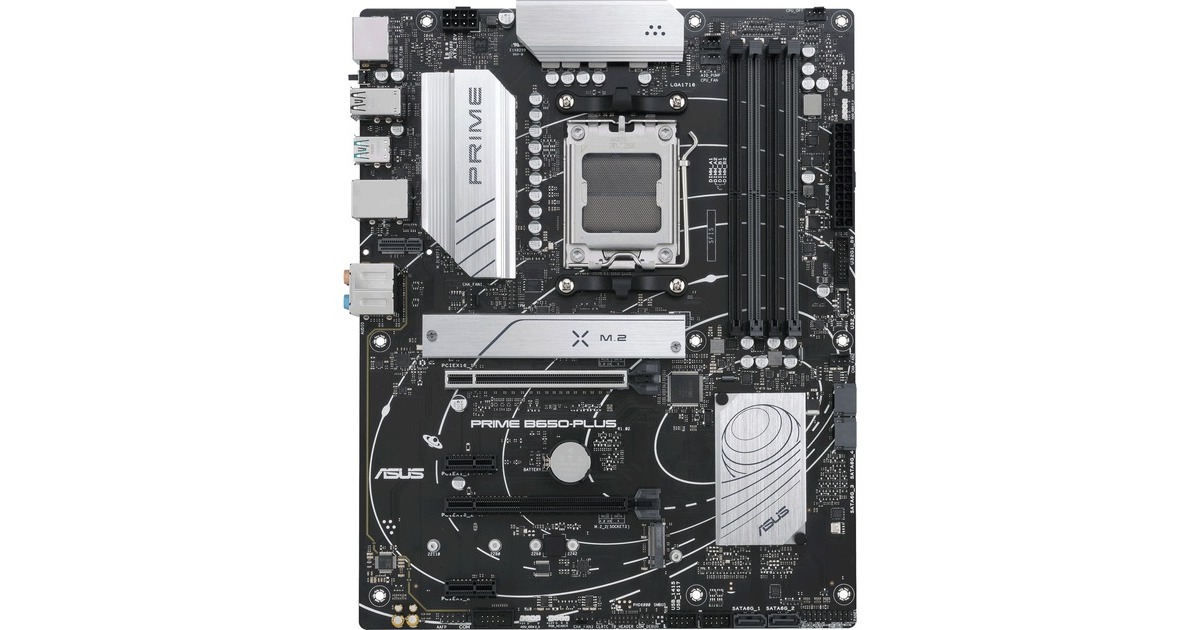

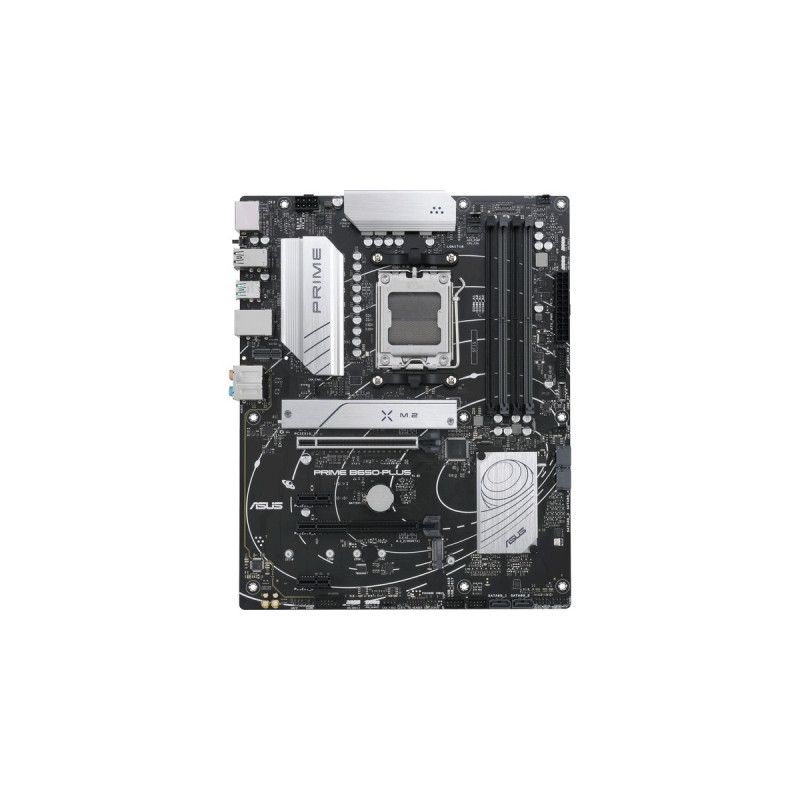

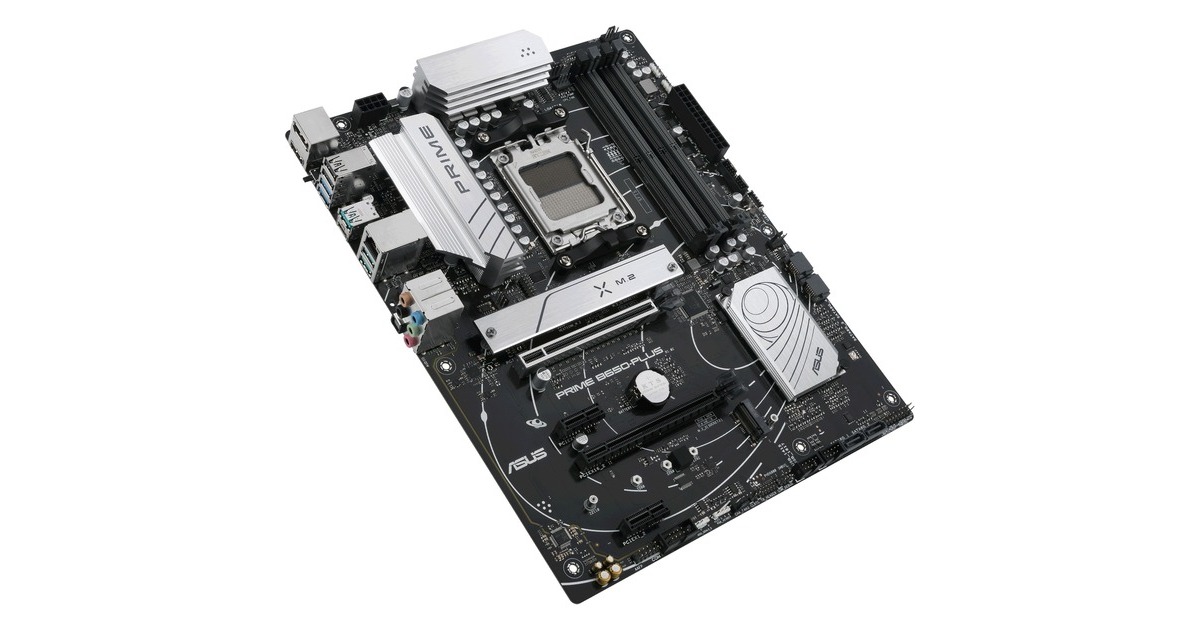

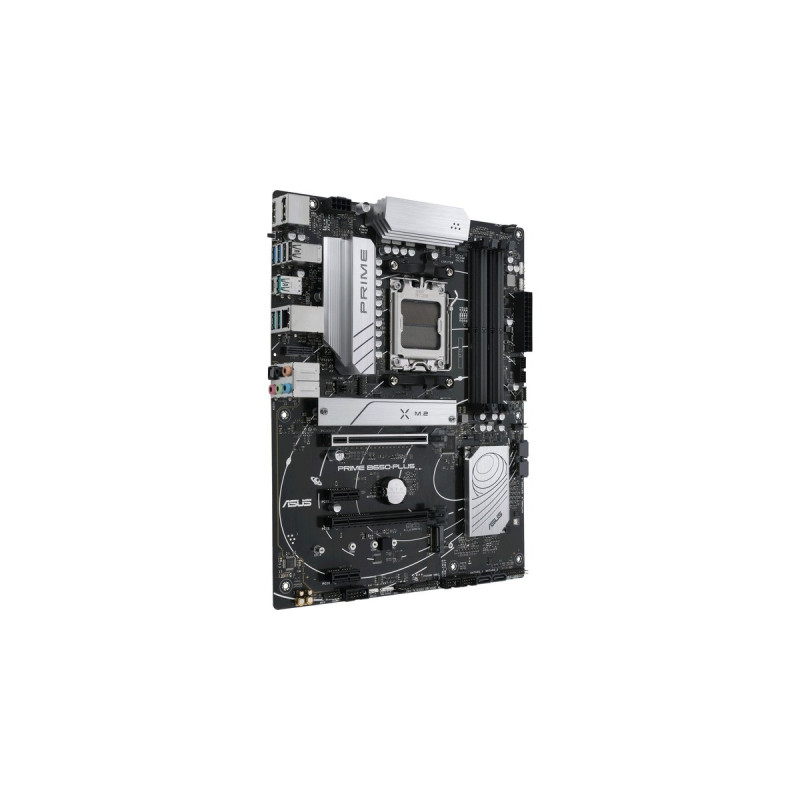

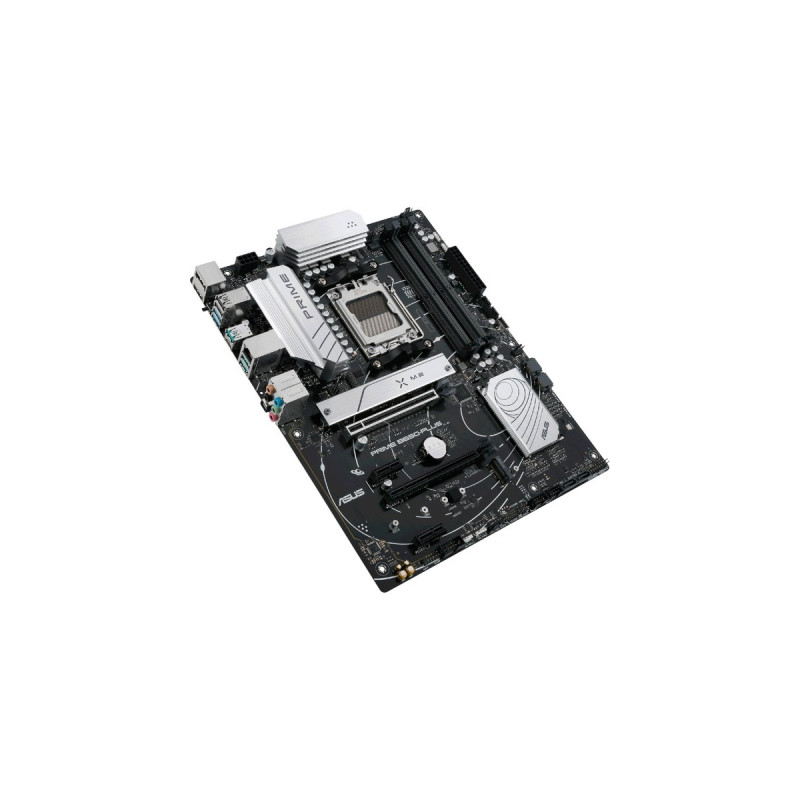

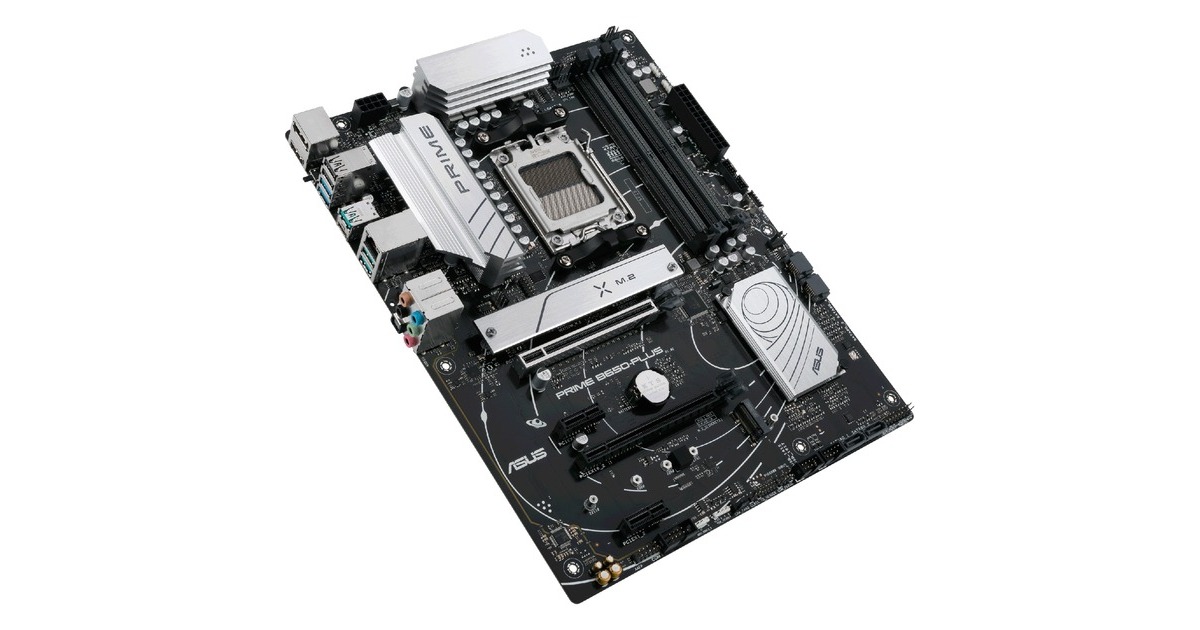

Das ASUS PRIME B650-PLUS basiert auf dem AMD-B650-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-Slots für bis zu 128 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRIME B650-PLUS gehören zwei PCIe-4.0-x16-Slots und zwei PCIe-4.0-x1-Slots. Außerdem verfügt das ASUS PRIME B650-PLUS über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, zweiM.2-Anschlüsse und eine Reihe an USB Schnittstellen.Art.-Nr.: 1870281
Specifications
Abmessungen
Breite: 244 mm x Höhe: 305 mm x Tiefe/Länge: 37 mm
addressable RGB LED Header
3
Anschlüsse (extern)USB-C 3.2 Gen 2 (10 Gbit/s)
1
Anschlüsse (intern)SATA
4
Anschlüsse (optional)USB 3.2 Gen 1 (5 Gbit/s)
2
Anzahl der Sockel
4x DDR5
BetriebssystemUnterstützung
Windows 10 ready, Windows 11 ready
BIOS
256 MB Flash ROM, UEFI AMI BIOS
Chipsatz
AMD B650
direkt nutzbare RAID-Level
0, 1, 10
DisplayPort-Out
1
EAN
4711081923381
ECC wird unterstützt
Ja
EFI-BIOS
Ja
Farbe
silber
Formfaktor
ATX
Gewicht
1 kg
HDMI
1
Hersteller-Nr.
90MB1BS0-M0EAY0
Hinweis
Die Bezeichnung USB 3.2 Gen 1 entspricht den früheren Bezeichnungen USB 3.1 Gen 1 bzw. USB 3.0.Die Bezeichnung USB 3.2 Gen 2 entspricht den früheren Bezeichnungen USB 3.1 Gen 2 bzw. USB 3.1.
Kanäle
2
LAN
Realtek 2.5Gb Ethernet
Line-In
1
Line-Out
3
M.2
2
M.2 Länge
30 - 110 mm
M.2 Schnittstelle
PCIe
M.2-Modul Key
E + M
Max. unterstützte CPUs
1
Maximale Speicherranks
8192
Mikrofon
1
Netzteil
ATX12V (24-Pin + 8-Pin)
Onboard Grafik
Die Grafikanschlüsse des Mainboards sind nur bei Verwendung einer CPU mit integriertem Grafikchip nutzbar.
PCIe x1
2
ProzessorUnterstützte Modelle
Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
RGB LED Header
1
RGB Standard
AURA Sync
S/PDIF-Out (optisch)
1
SATA-Controller
AMD B650
Seriell
1
Sockel
AM5
Sound
Realtek 7.1
Speichermaximal
128 GB
SteckplätzePCIe x16
2x (davon: 1x PCIe x16, 1x PCIe x4)
TPM
Ja
Typ
Mainboard
unterstützte Standards
DDR5-4800, DDR5-5000, DDR5-5200 DDR5-5400(OC), DDR5-5600(OC), DDR5-5800(OC), DDR5-6000(OC), DDR5-6200(OC), DDR5-6400+(OC)
USB 2.0
2
USB-A 2.0
2
USB-A 3.2 Gen 1 (5 Gbit/s)
1
USB-A 3.2 Gen 2 (10 Gbit/s)
3
USB-Controller
AMD B650
Verwendung
PC
Weitere Informationen
Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich.
