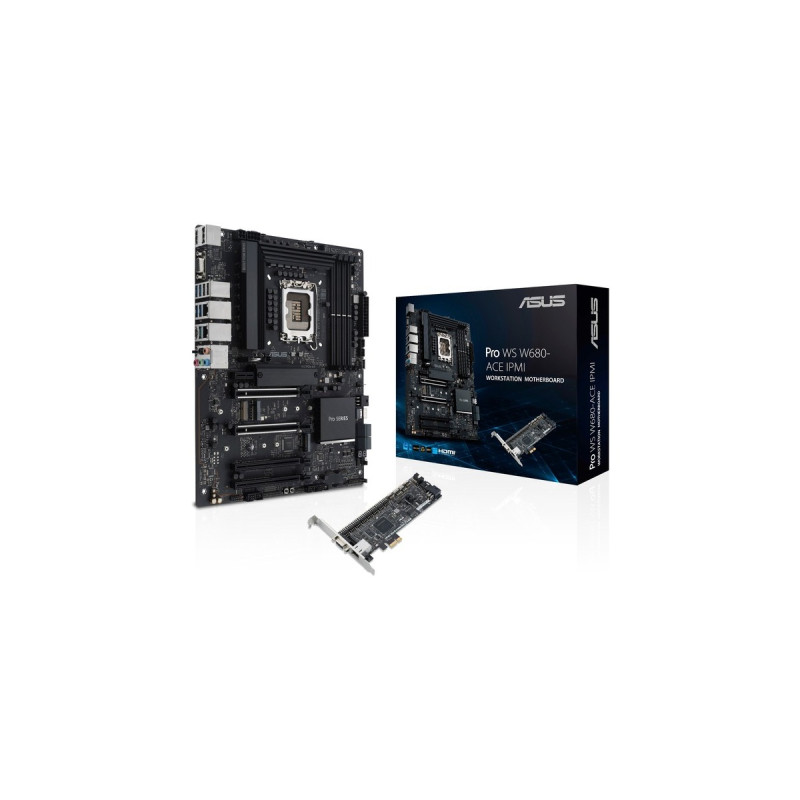

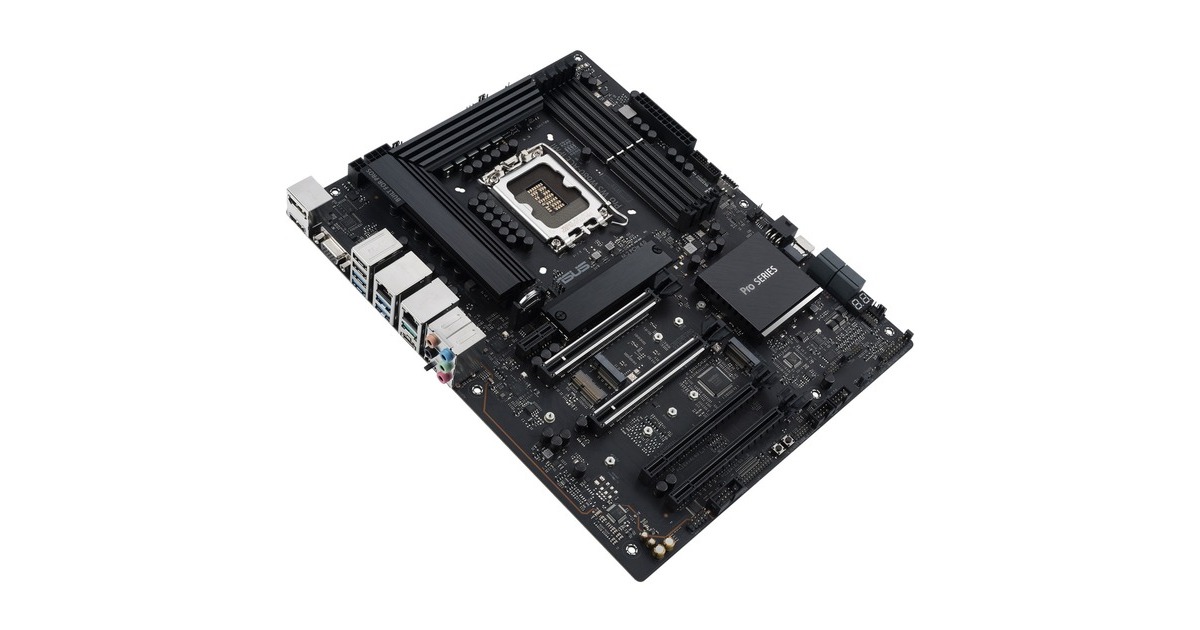

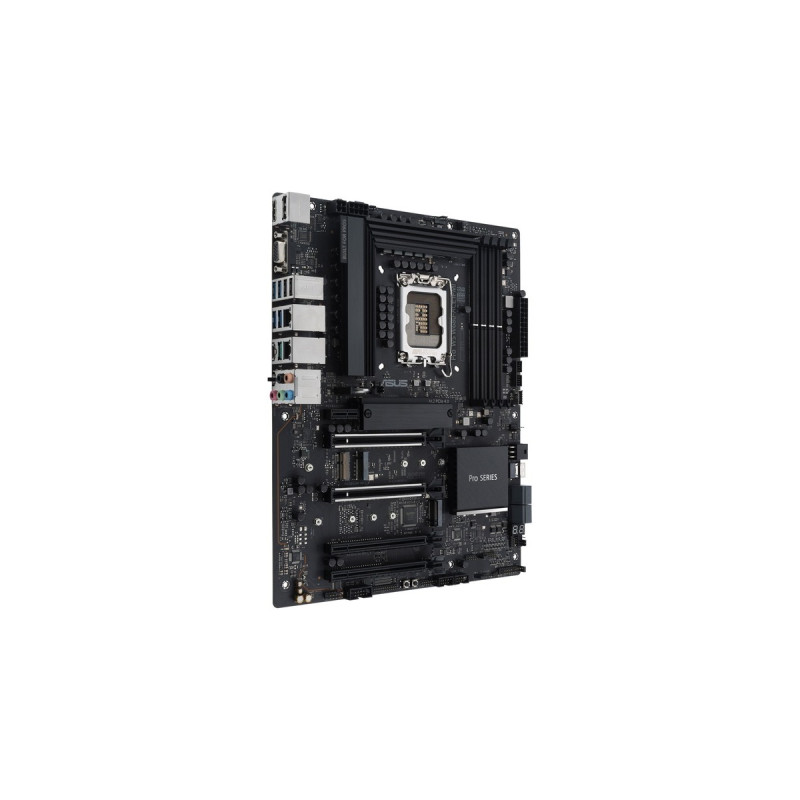

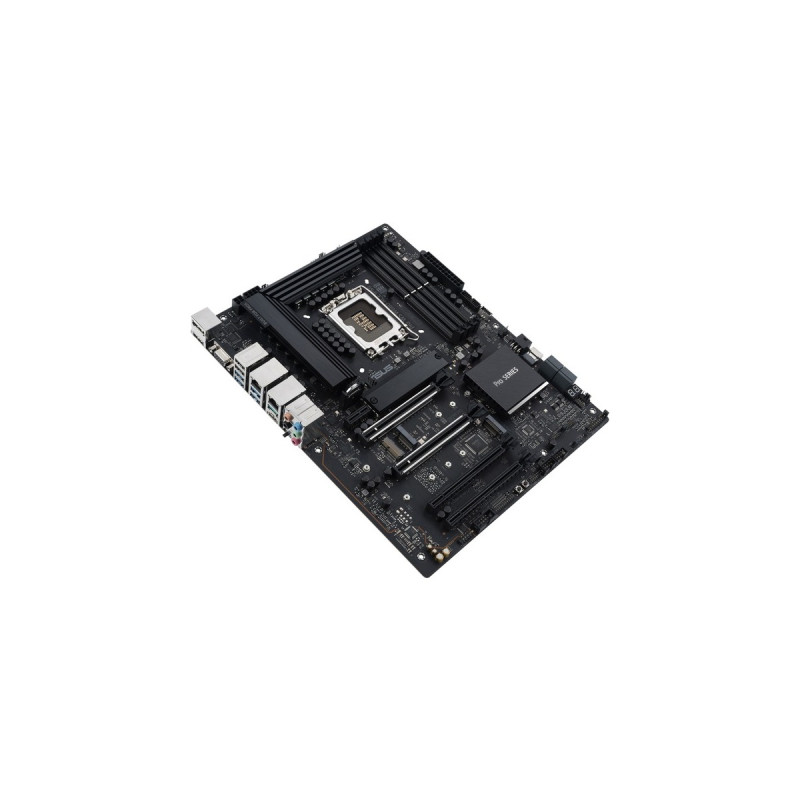

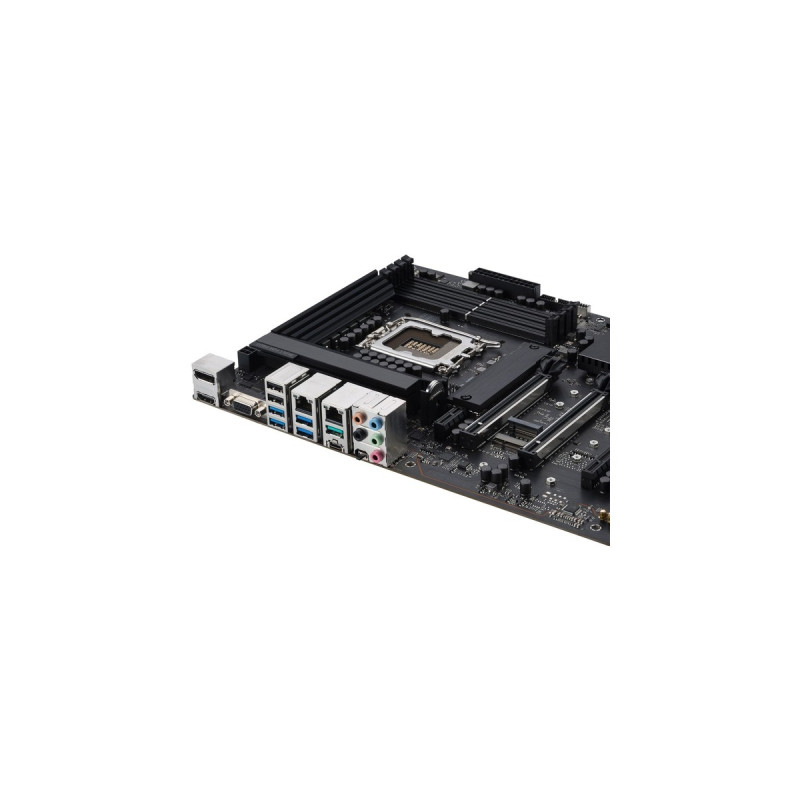

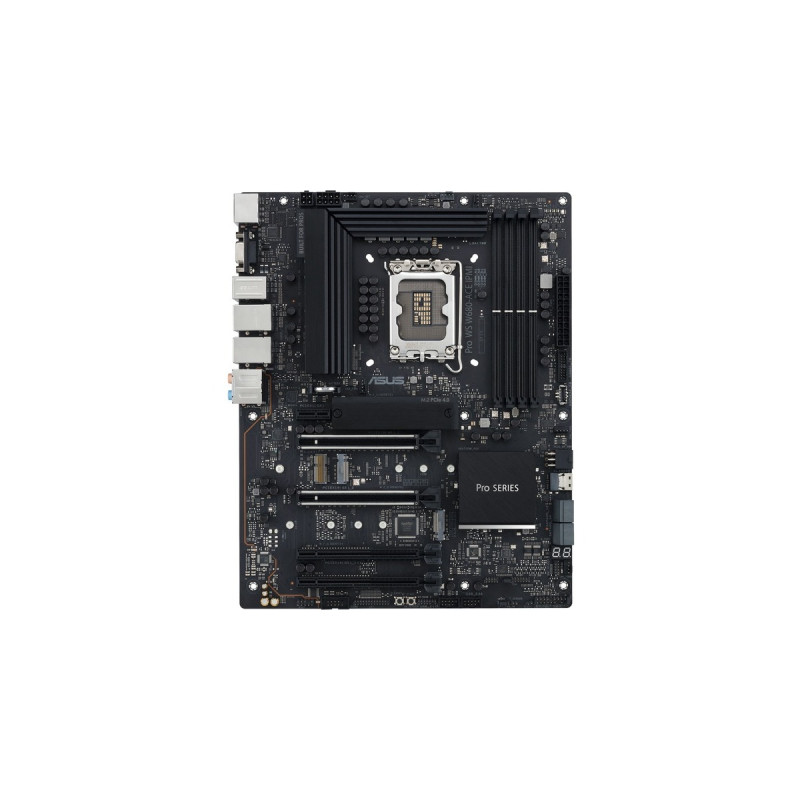

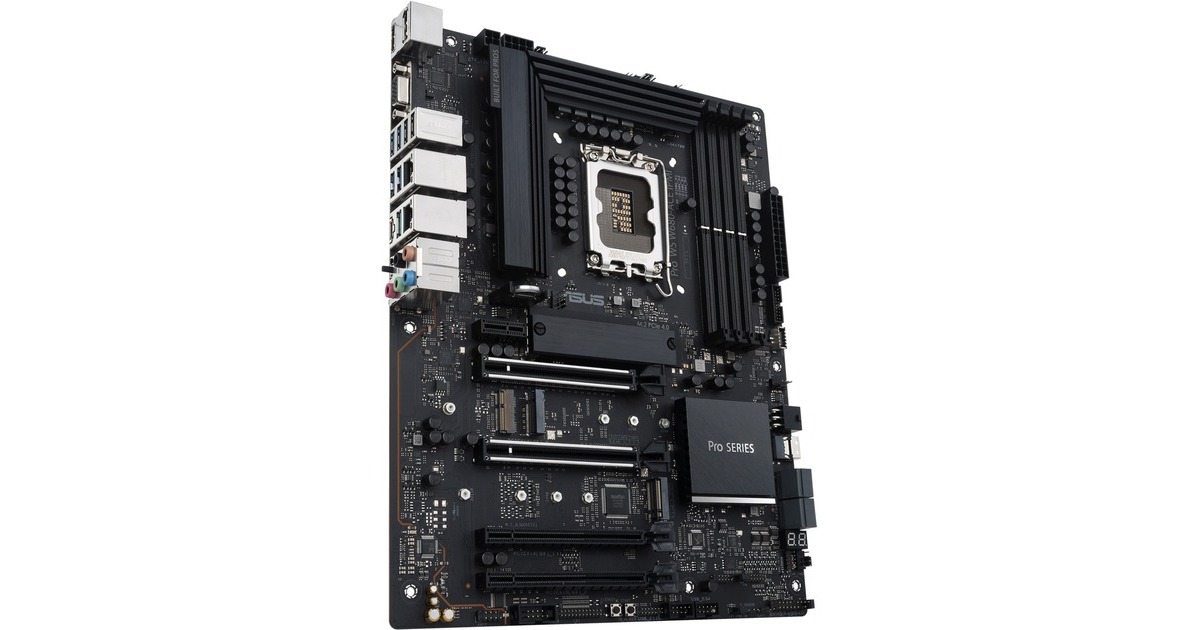

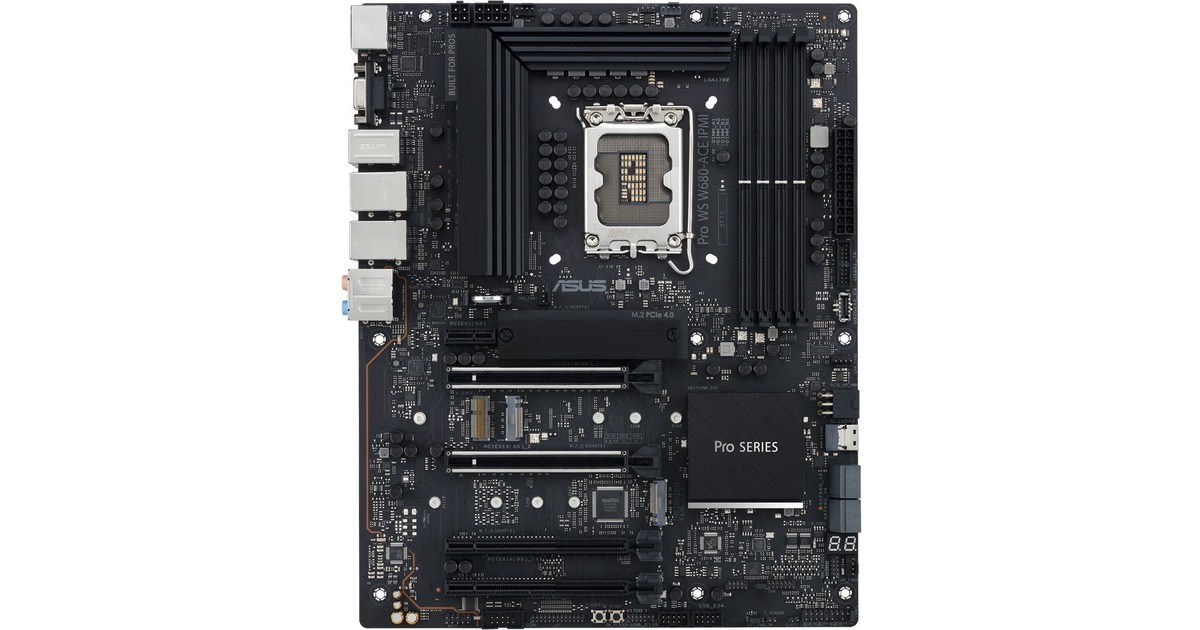

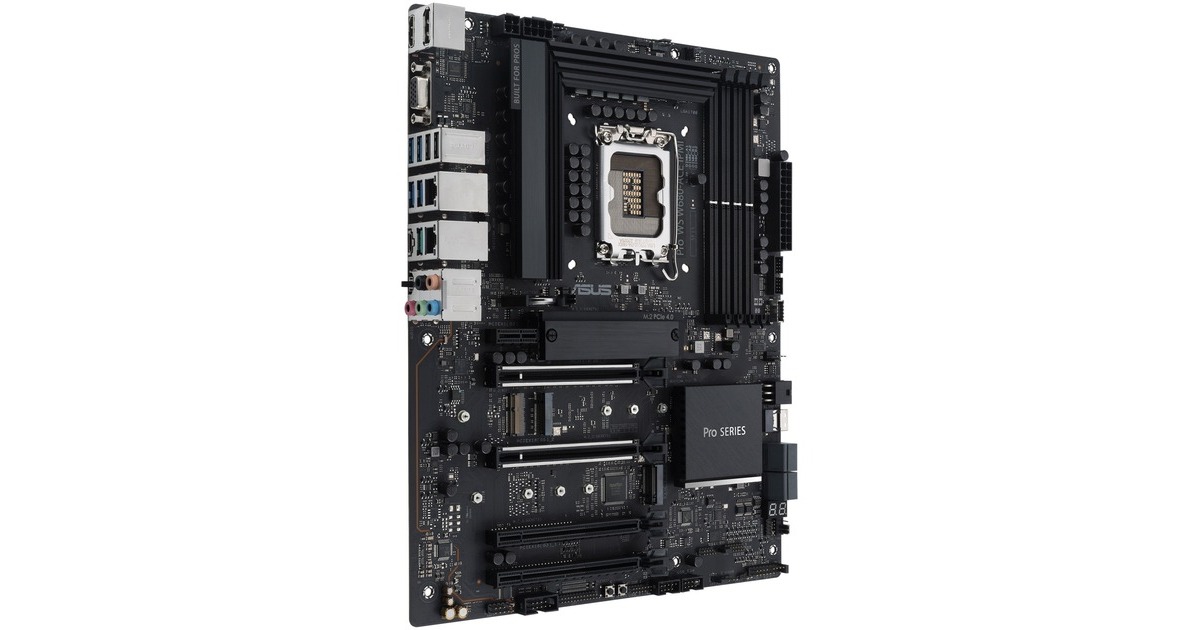

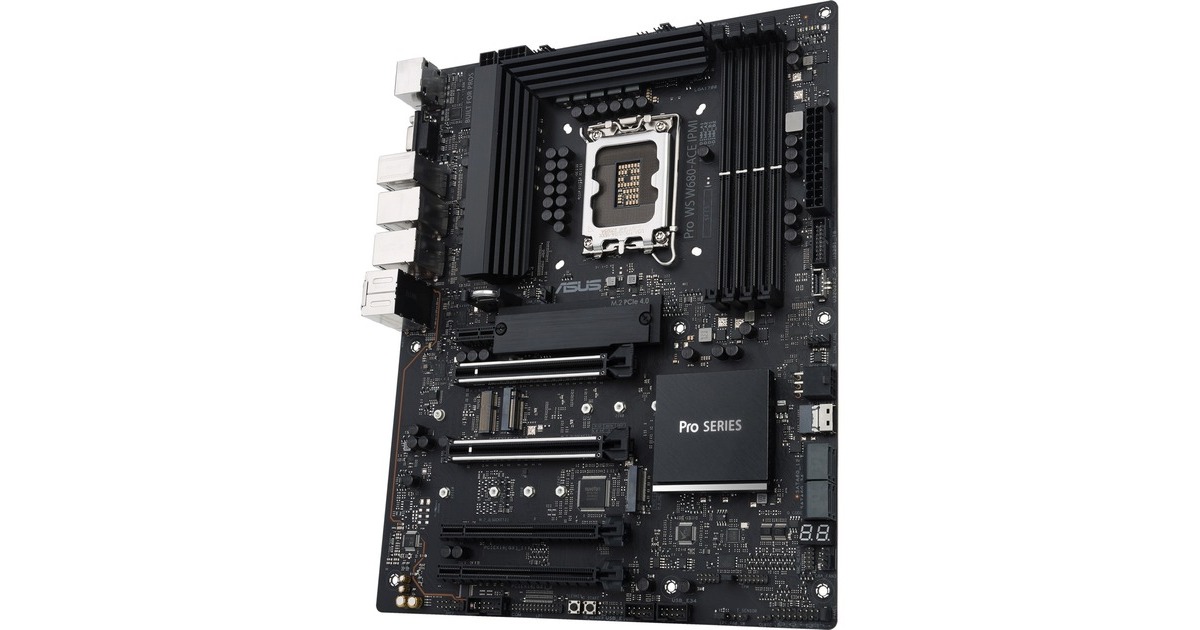

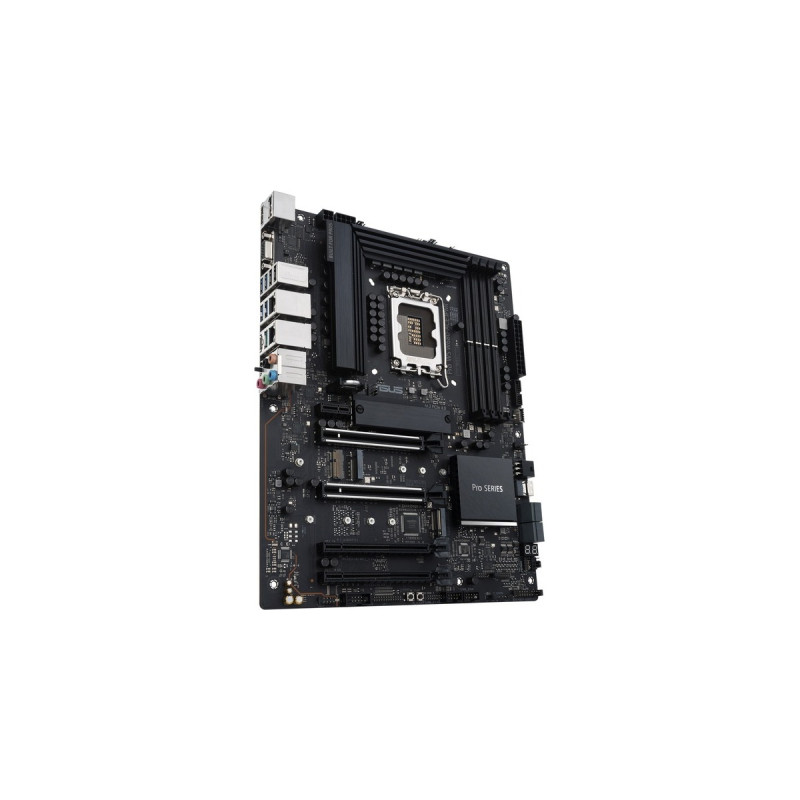

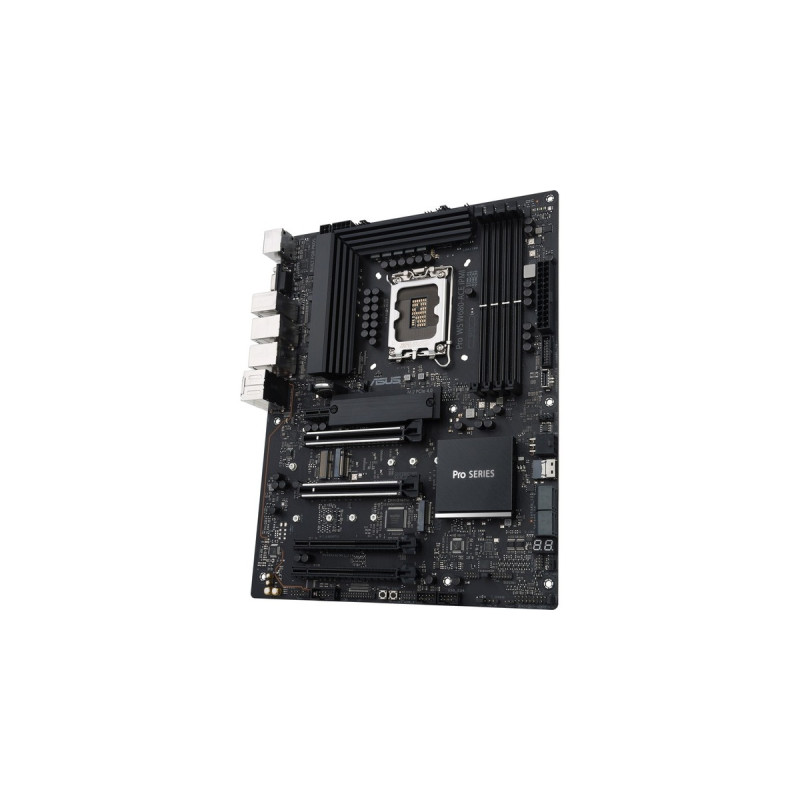

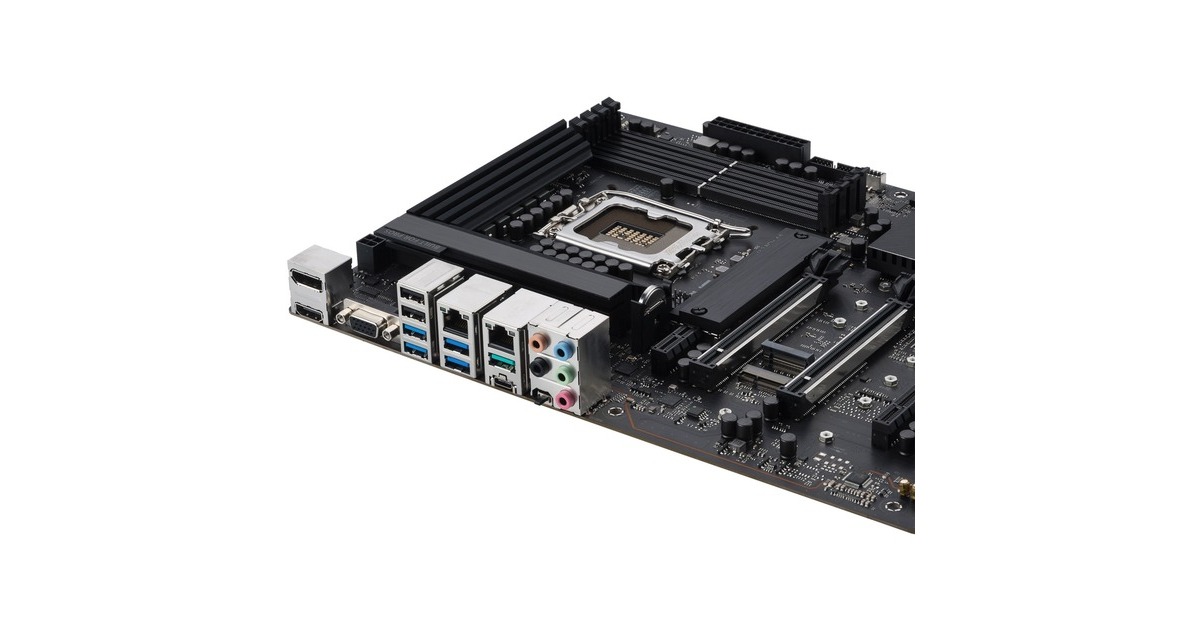

Das PRO WS W680-ACE IPMI Mainboard basiert auf dem Intel®-W680-Chipsatz und unterstützt Intel®-Prozessoren für den Sockel 1700 der 12ten und 13ten Generation. Es verfügt über vier DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 128 GB Arbeitsspeicher. Zur weiteren Ausstattung des PRO WS W680-ACE IPMI gehört ein PCIe-5.0-x16-Slot, ein PCIe-5.0-x8, zwei PCIe-3.0-x4-Slots und ein PCIe-3.0-x1 Slot. Außerdem verfügt das PRO WS W680-ACE IPMI über 8-Kanal-Sound, zwei 2,5 Gigabit-LAN-Schnittstelle, vier SATA-Anschlüsse, drei M.2-Anschlüsse, und eine Reihe an USB-Schnittstellen.Art.-Nr.: 1911419
Specifications
4-polig PWM-Lüfter
6
Abmessungen
Breite: 305 mm x Höhe: 244 mm
Anschlüsse (extern)USB-C 3.2 Gen 2 (10 Gbit/s)
1
Anschlüsse (intern)SATA
4
Anschlüsse (optional)USB 3.2 Gen 1 (5 Gbit/s)
2
Anzahl der Sockel
4x DDR5
BetriebssystemUnterstützung
Windows 10 ready, Windows 11 ready
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Chipsatz
Intel® W680
DisplayPort-Out
1
EAN
4711387005934
ECC wird unterstützt
Ja
Formfaktor
ATX
HDMI
1
Hersteller-Nr.
90MB1DN0-M0EAY0
Hinweis
Die Bezeichnung USB 3.2 Gen 1 entspricht den früheren Bezeichnungen USB 3.1 Gen 1 bzw. USB 3.0.Die Bezeichnung USB 3.2 Gen 2 entspricht den früheren Bezeichnungen USB 3.1 Gen 2 bzw. USB 3.1.
Kanäle
2
LAN
2x Intel® 2,5 GbS LAN
Line-In
1
Line-Out
3
M.2
3
M.2 Länge
42 - 110 mm
M.2 Schnittstelle
PCIe
M.2 WLAN
1
M.2-Modul Key
M
Max. unterstützte CPUs
1
Maximale Speicherranks
8
Mikrofon
1
Netzteil
EPS12V 2.9x (24-Pin + 8-Pin + 6-Pin + 4-Pin)
Onboard Grafik
Die Grafikanschlüsse des Mainboards sind nur bei Verwendung einer CPU mit integriertem Grafikchip nutzbar.
PCIe x1
1
ProzessorUnterstützte Modelle
Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
RJ-45
2
SlimSAS
1
Sockel
1700
Sound
Realtek 7.1 High Definition Audio
Speichercontroller in CPU
Ja
Speichermaximal
128 GB
SteckplätzePCIe x16
4x (davon: 1x PCIe x16, 1x PCIe x8, 2x PCIe x4)
Typ
Mainboard
USB 2.0
4
USB-A 2.0
2
USB-A 3.2 Gen 1 (5 Gbit/s)
4
USB-A 3.2 Gen 2 (10 Gbit/s)
1
USB-C 3.2 Gen 2 (10 Gbit/s
1
Verwendung
PC
VGA
1
Weitere Informationen
Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich.
Zubehörvorhanden

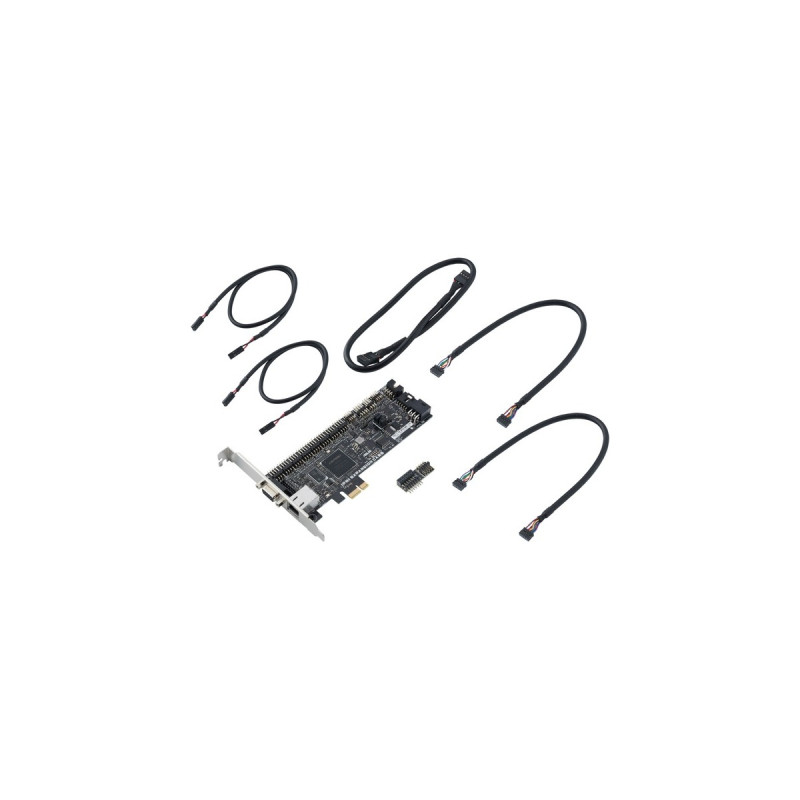

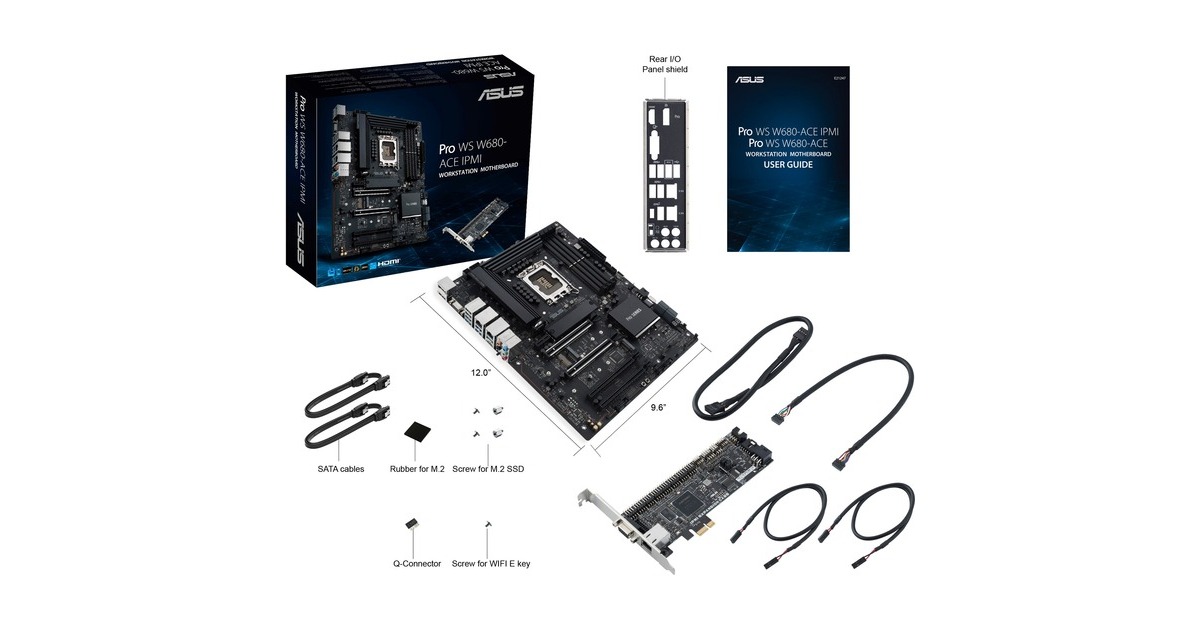

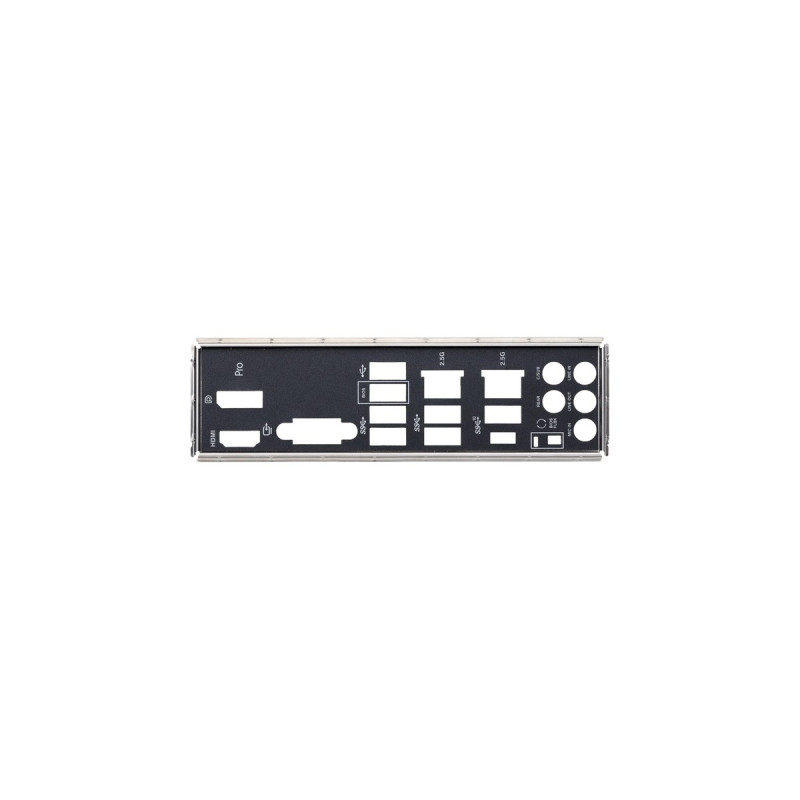

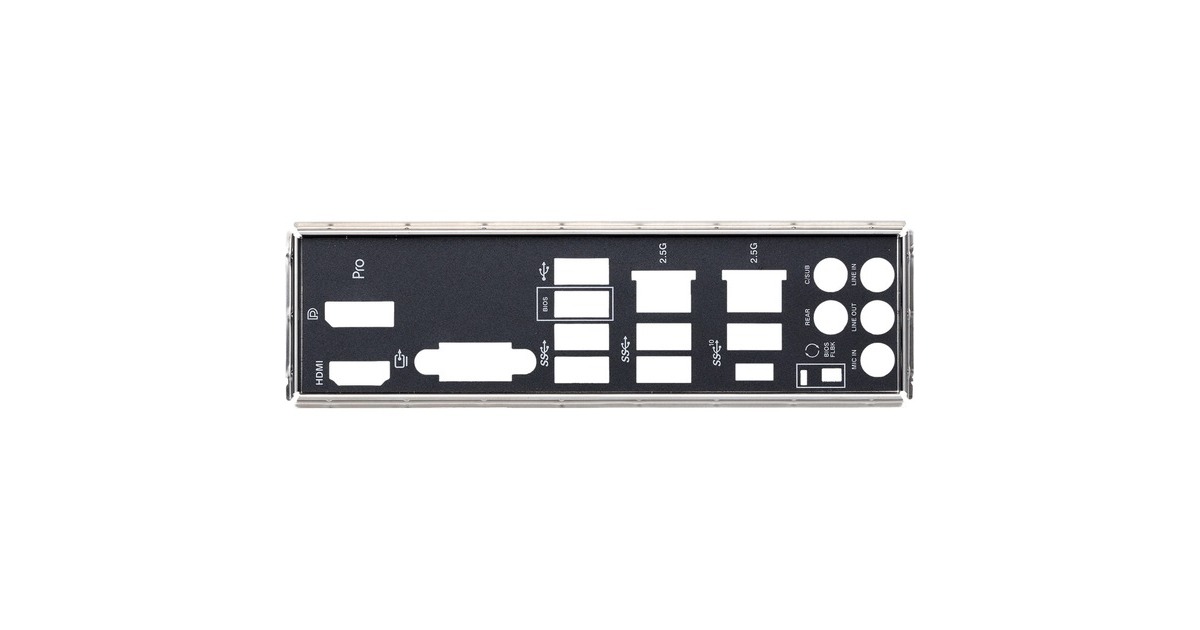

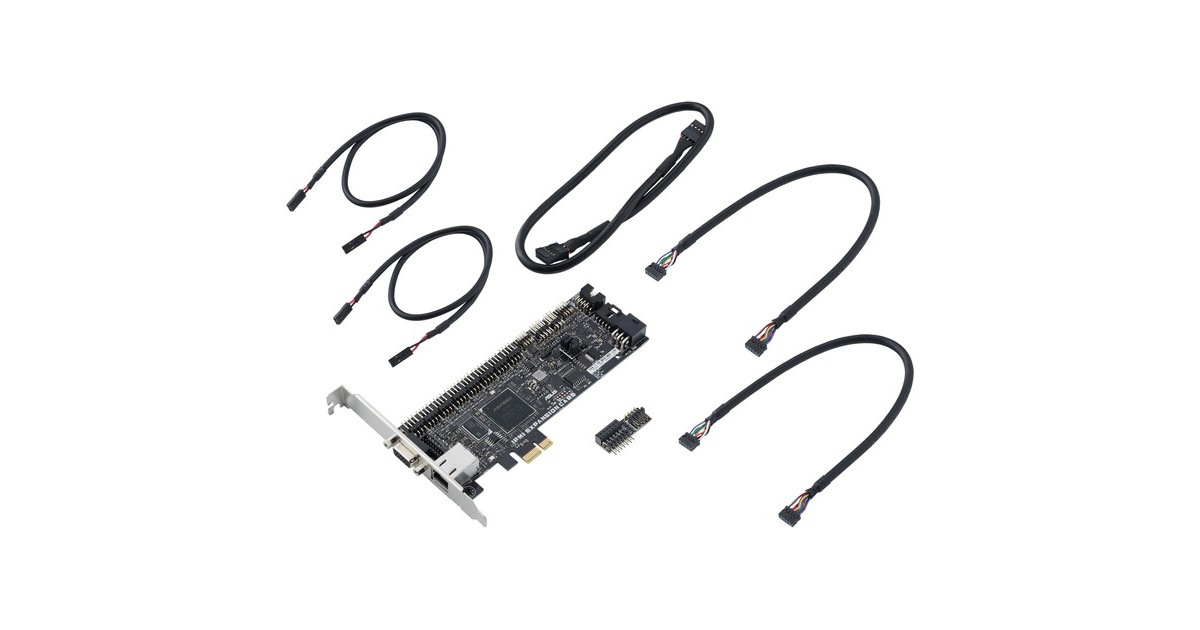

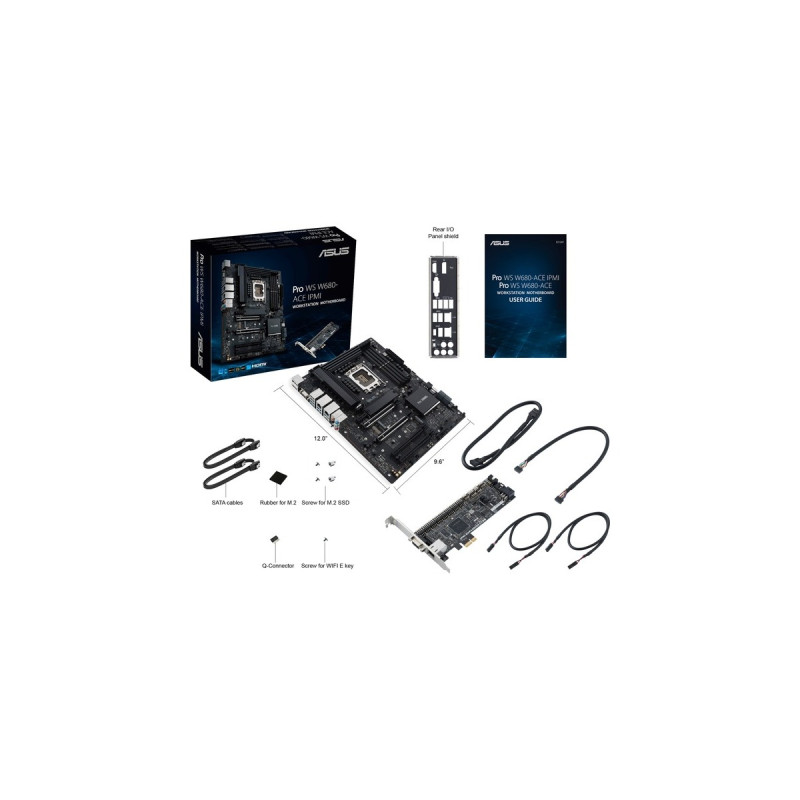

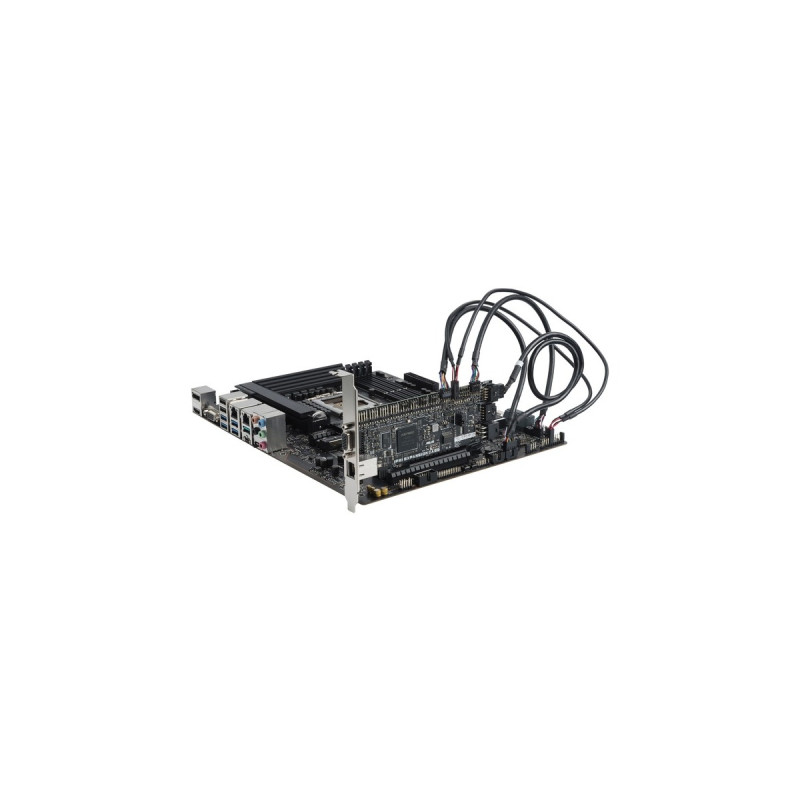

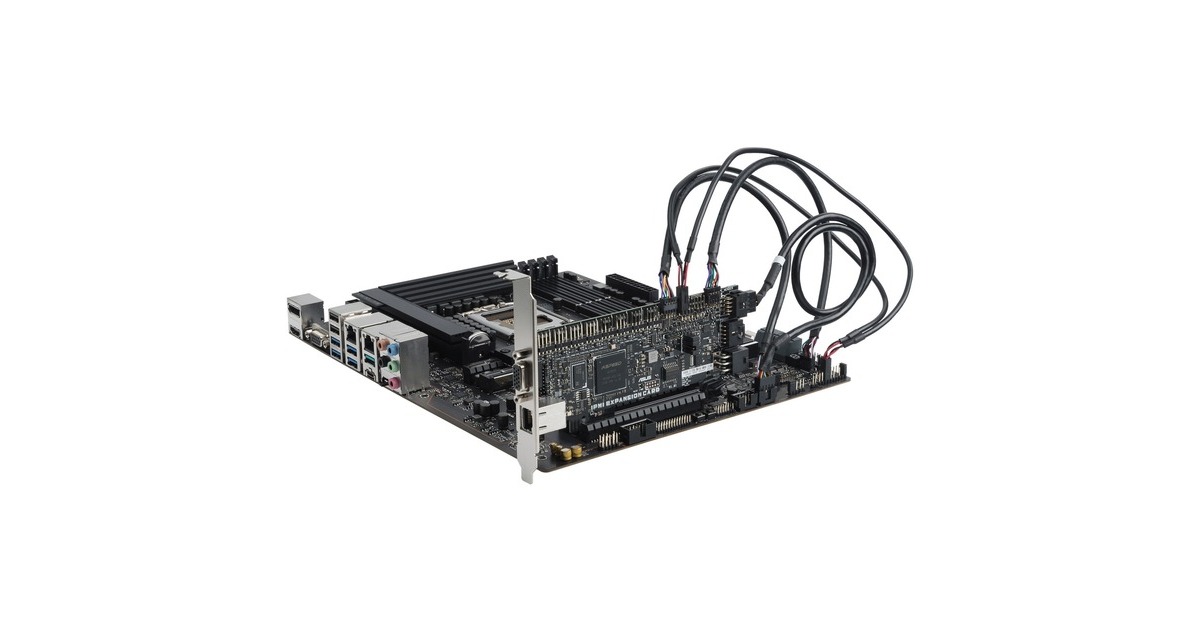

2x SATA-Kabel, 1x Q-connector, Montagematerial, I/O Shield, IPMI Expansion Card, BMC-Kabel, Power On/Off-Kabel, Reset-Kabel, USB 2.0 Kabel, Anleitungen
