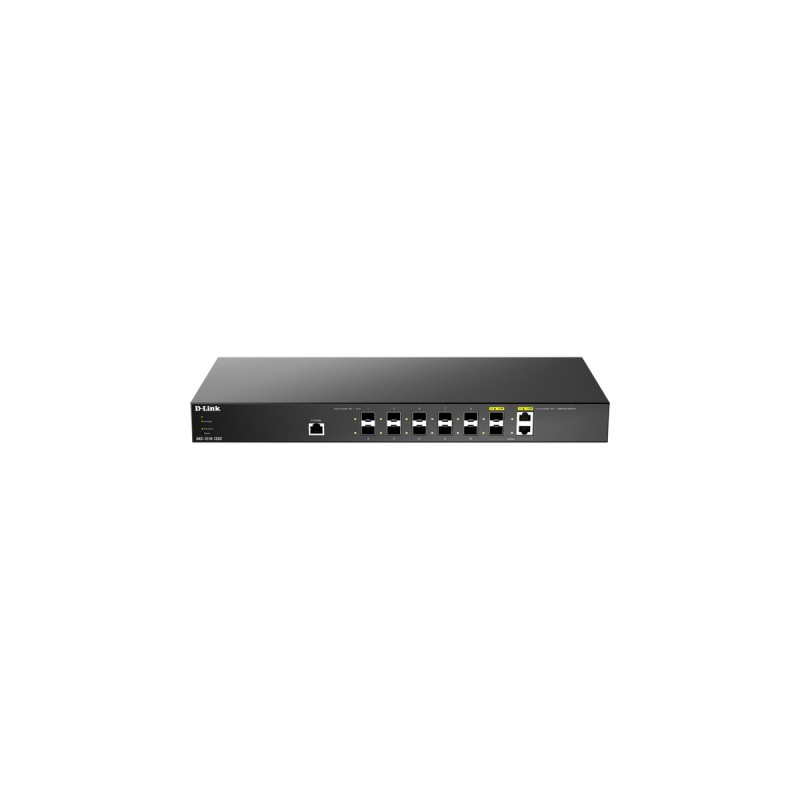

D-Link DXS-1210-12SC, Switch

Hersteller D-Link Artikelnr. DXS-1210-12SC/E
All about product
Description
Eigenschaften
Questions0
Lagernd
Abmessungen:Breite: 440 mm x Höhe: 44 mm x Tiefe/Länge: 210 mm
AnschlüsseNetzwerkRJ-45:6x (davon: 2x 10/100, 2x 10/100/1000, 2x 100/1000/10000)
Bauform:Rack
Combo RJ-45/SFP:2x
Combo RJ-45/SFP+:2x
D-Link DXS-1210-12SC, Switch
Description

Produktbeschreibung

Der D-Link DXS-1210-12SC der DXS-1210-Serie ist ein Switch mit 12 Ports. Er kann an Cat.6- und Glasfaserkabel angeschlossen werden, um für eine zuverlässige und schnelle 10-Gigabit-Konnektivität zu sorgen. Der DXS-1210-12SC bietet eine flexible Lösung für Upstream- oder Downstream-Serververbindungen und vereinfacht die Netzwerkadministration.Art.-Nr.: 1907182
Specifications
Abmessungen
Breite: 440 mm x Höhe: 44 mm x Tiefe/Länge: 210 mm
AnschlüsseNetzwerkRJ-45
6x (davon: 2x 10/100, 2x 10/100/1000, 2x 100/1000/10000)
Bauform
Rack
Combo RJ-45/SFP
2x
Combo RJ-45/SFP+
2x
EAN
0790069467646
Einsatzbereich
Business
Feature
Energy Efficiency Ethernet (EEE),Power Saving By Link Status,Power Saving By LED Shut-Off,Power Saving By Port Shut-Off ,Power Saving By System Hibernation,MAC Address Table Size16K,802.3x Flow Control ,Head-of-line (HOL) Blocking Prevention ,802.1D Spanning Tree (STP),802.1w Rapid Spanning Tree (RSTP) ,802.1s Multiple Spanning Tree (MSTP) ,BPDU Filtering ,Root Restriction,Root Guard ,G.8032 ERPS ,802.1AX Link Aggregation ,802.3ad Link Aggregation ,Link Aggregation Group Per Device 8,Max Port Per Link Aggregation Group 8,Port Mirroring,Jumbo Frame 9 KB,Loopback Detection (LBD) ,iSCSI Awareness ,IGMP Snooping ,Max IGMP Snooping Groups 384,IGMP Snooping Fast Leave ,MLD Snooping ,MLD Snooping Groups ,MLD Snooping Fast Leave ,802.1Q VLAN ,VLAN Groups ,Port-based VLAN ,802.1v Protocol-based VLAN ,MAC-based VLAN ,Subnet-based VLAN ,Voice VLAN ,Auto Surveillance VLAN ,Surveillance VLAN ,GVRP ,ISM VLAN (Multicast VLAN) ,Asymmetric VLAN ,Private VLAN ,IP Interface ,Max Number of IP Interface ,ARP ,ARP Entries ,IPv6 Neighbor Discovery (ND) ,ND Entries ,Static Route ,Default Route ,Number of Queue 8,Class of Service (CoS) ,Strict Priority Queue (SPQ) ,Weighted Round Robin (WRR) ,Deficit Round Robin (DRR ,Weighted Deficit Round Robin (WDRR) ,SPQ + WRR ,Port-based Bandwidth Control ,Queue-based Bandwidth Control ,MAC Access List ,IP Access List ,IPv6 Access List ,Time based ACL ,SSH ,SSL ,Port Security ,Broadcast/Multicast/Unicast Storm Control ,Traffic Segmentation ,IP-MAC-Port Binding (IMPB) ,IP Source Guard ,DHCP Snooping ,IPv6 Snooping ,Dynamic ARP Inspection (DAI) ,DHCPv6 Guard ,IPv6 Route Advertisement (RA) Guard ,IPv6 ND Inspection ,Duplicate Address Detection (DAD) ,D-Link Safeguard Engine ,DHCP Server Screenin ,ARP Spoofing Prevention ,DoS Attack Prevention ,802.1X ,Port based 802.1X Authentication ,Host based 802.1X Authentication ,Identity Driven 802.1X Policy Assignment ,Web-based Access Control (WAC) ,Port based WAC Authentication ,Host based WAC Authentication ,Identity Driven WAC Policy Assignment ,MAC-based Access Control (MAC) ,Port based MAC Authentication ,Host based MAC Authentication ,Identity Driven MAC Policy Assignment ,Compound Authentication ,Guest VLAN ,Authentication for Management Access ,Privilege Level for Management Access ,RADIUS ,RADIUS Accounting ,TACACS+ ,Authentication Database Failover ,Trusted Host ,Cable Diagnostics ,Optical Transceiver Digital Diagnostic Monitoring (DDM) ,Simple Network Time Protocol (SNTP) ,Command Line Interface (CLI) ,Web-based GUI ,Telnet Server ,SNMP ,SNMP Trap ,TFTP Client ,RMONv1 ,System Log ,RMONv2 ,LLDP ,LLDP-MED ,D-Link Discover Protocol (DDP) (v 0.26),DHCP/BootP Client ,DHCP Auto-configuration ,DHCP relay ,Dual Images ,Dual Configurations ,DNS Client ,Debug Command ,Password Encryption ,MTU Setting ,Ping ,Traceroute ,D-Link Network Assistant ,IPv6 Ready Logo (pre-test),SSH ,SSL
Features
Auto-MDI/MDIX, passive PoE (Stromversorgung über PoE)
Gewicht
2,8 kg
HardwareCPU
1 GHz
Hersteller-Nr.
DXS-1210-12SC/E
LWL
12x SFP, 12x SFP+
RAM
256 MB
Routing & SwitchingSwitching Bandbreite
240 GBit/s
Stromversorgung
Stromverbrauch Betrieb: 43.81 W
Typ
Switch
Weiterleitungs-Rate
178.56 MPP/s
