SelfSat H50dCSS+ Unicable 2, Antenne(weiß)

Hersteller SelfSat Artikelnr. 13478
All about product
Description
Eigenschaften
Questions0
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
Lagernd
Abmessung:Breite: 566 mm x Höhe: 300 mm x Tiefe/Länge: 65 mm
Antennen-Art:Satellit
AntenneRauschmaße:0,8 dB
Ausführung:Flachantenne
EAN:3700433807036
SelfSat H50dCSS+ Unicable 2, Antenne(weiß)
Description

Produktbeschreibung

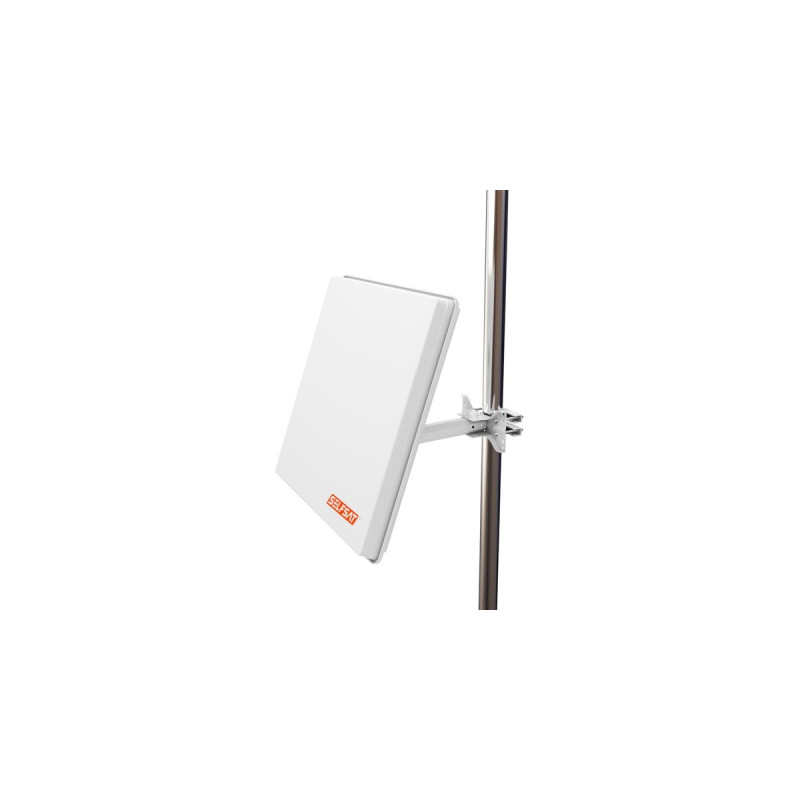

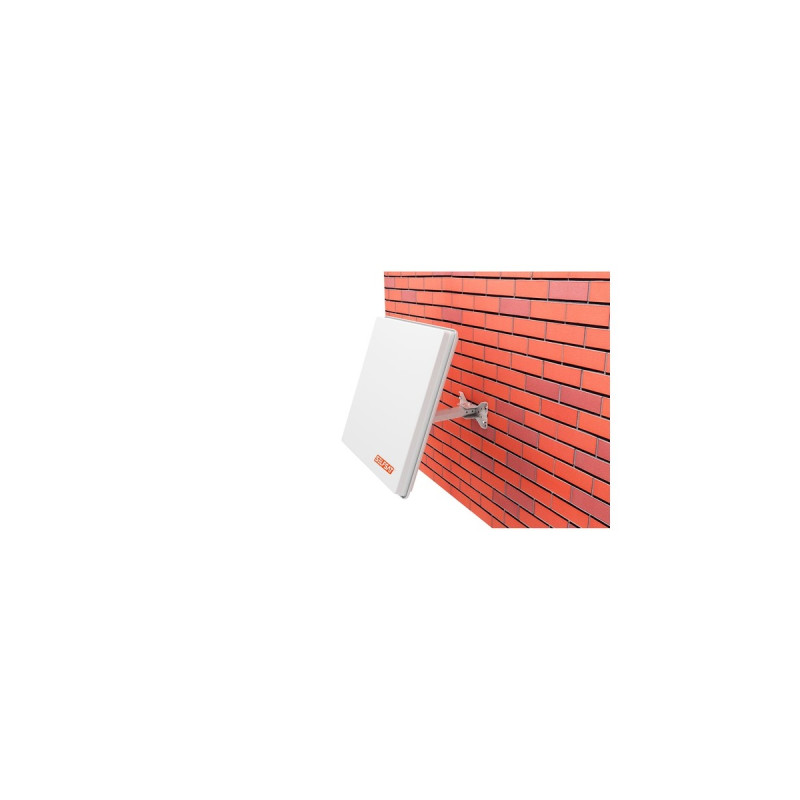

Die SelfSat H50dCSS+ Unicable 2 ist eine Antenne mit zwei Unicable Ausgängen, die sich für bis zu 26 Nutzer eignet. Über die SCR-Ausgänge können JESS tauchgliche Geräte angeschlossen werden, so ist sie zu einer Vielzahl von Geräten kompatibel. Die Montage der Antenne ist besonders komfortabel und kann sowohl an einem Mast als auch der Wand befestigt werden.Art.-Nr.: 1854166
Specifications
Abmessung
Breite: 566 mm x Höhe: 300 mm x Tiefe/Länge: 65 mm
Antennen-Art
Satellit
AntenneRauschmaße
0,8 dB
Ausführung
Flachantenne
EAN
3700433807036
Einsatzbereich
Innen
Empfangsfrequenz
10.7 GHz - 12.75 GHz
Farbe
weiß
Gewicht
7000 Gramm
Hersteller-Nr.
13478
Hinweis
Technische Daten (SatCR - Ausgang): Konversionsgewinn außerhalb der AGC: 60dB (Min.), Gewinn Variation: 7.5dB P -P (Max.), IF AGC Ausgangssoll Stufe im CW Modus: -32~-17dBm
Impedanz
75 Ω
LNBL.O-Frequenz
9.75 GHz - 10.6 GHz
Polarisation
Linear Vertikal, Linear Horizontal
StromversorgungStromaufnahme
250 mA
Typ
Antenne
Verstärkung
36,1 dB
Weitere Informationen
Unicable (SCR) Frequenzen: CH01: 1210 MHz, CH02: 1420 MHz, CH03: 1680 MHz, CH04: 2040 MHz, CH05: 1005 MHz, CH06: 1050 MHz, CH07: 1095 MHz, CH08: 1140 MHz, CH09: 1260 MHz, CH10: 1305 MHz, CH11: 1350 MHz, CH12: 1475 MHz, CH13: 1520 MHz, CH14: 1565 MHz, CH15: 1610 MHz, CH16: 1725 MHz, CH17: 1770 MHz, CH18: 1815 MHz, CH19: 1860 MHz, CH20: 1905 MHz, CH21: 1950 MHz, CH22: 1995 MHz, CH23: 2085 MHz, CH24: 2130 MHz
WLANVSWR
2:1
Zubehörvorhanden
Unicable 2 LNB, Legacy Ausgang (2x), Masthalterung mit Befestigungsschelle, Wandhalterung, Aufbauanleitung, Schraubensatz, Werkzeug
